ARISS announcements at HamCation 2023
By Steve Stroh N8GNJ
Digital [Fast Scan] Amateur Television (DATV) is returning to the International Space Station (ISS) in 2023!
I’m a fan of the Amateur Radio on the International Space Station (ARISS) program, both personally, and from a Zero Retries Interesting perspective. When explaining Amateur Radio to a techie (or non-techie), mentioning that there is an Amateur Radio station… actually two Amateur Radio stations, on the ISS is a proud boast.
Thus, I thought these ARISS announcements from HamCation 2023 were notable:

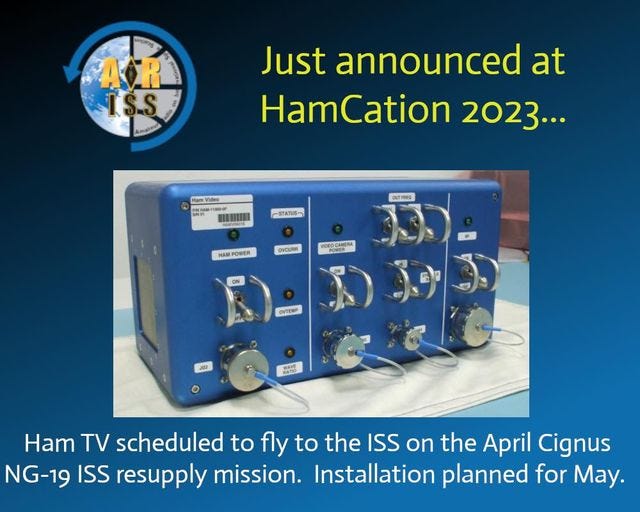

The most immediate Zero Retries Interesting item was that (“fast scan”) television transmissions from the ISS will resume in 2023:
This is exciting news because my observation is that our society has substantially shifted to “video first”1 for information consumption, and thus ARISS activities that include video will be more attractive and relevant to many.
The most complete description that I can find of Digital Amateur Television (DATV) on ARISS is here (though it’s a bit dated given the references to Windows XP). The big points (to me) of DATV on the ISS are:
DATV is a mature system in Amateur Radio, especially popular in Europe.
Being digital, its modulation is more robust than analog television, so DATV is more satisfying to receive as the image quality is better than analog.
A DATV system had been on the ISS some years ago, but the DATV equipment failed. Repair onboard the ISS wasn’t possible, and apparently (?) there was no ground spare unit for an easy swap. My impression from reading old articles is that when years passed that DATV wasn't operational on the ISS, a lot of people lost interest / hope that DATV would ever be available again from ISS.
Behind the scenes, the failed ISS DATV system was removed and queued for return to ground, was returned to ground, was repaired, was re-certified for return to the ISS, and is now scheduled to be returned to ISS in mid-2023.
Receiving DATV from ISS isn’t simple:
Transmissions are on 2.3 / 2.4 GHz, thus it requires a high-gain antenna and active azimuth / elevation tracking as the ISS passes are fast and brief.
DATV uses Digital Video Broadcasting - Satellite (DVB-S) modulation which is widely used for, well, broadcasting from satellites. But it’s a bit tricky to use DVB-S as an Amateur Radio Operator. (To date, I haven’t found any “Hack a junkbox satellite television receiver to receive DATV” articles.)
There’s some indication that in the years that DATV has been absent from the ISS that receiving DATV is getting easier due to the increasing capabilities and affordability of Software Defined Receivers whose frequency range includes 2.3 / 2.4 GHz.
I think that once DATV capability is restarted on the ISS, seeing digital images from space is going to add a new dimension of interest in ARISS, along with voice and data.
The best resource that I’ve found about DATV overall is the British Amateur Television Club (BATC). BATC is definitely Zero Retries Interesting, with an excellent newsletter - CQ-TV and a wealth of information about DATV including a Wiki. I simply haven’t taken the time to bring myself up to speed on DATV, but BATC is an excellent resource.
However, DATV returning to the ISS wasn’t the only Zero Retries Interesting announcement from ARISS at HamCation 2023:

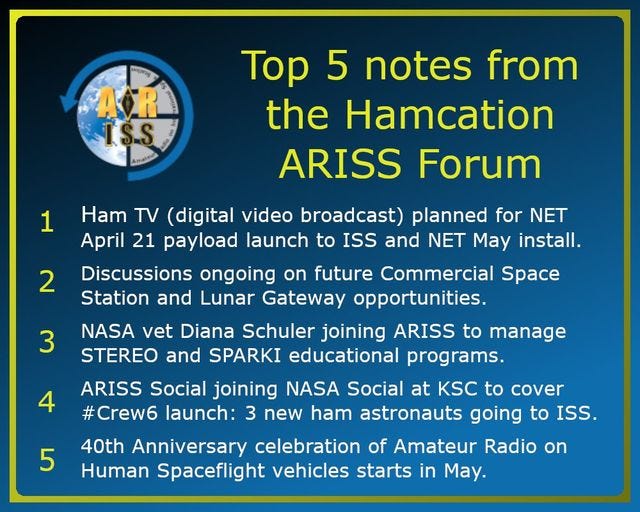

It was exciting to read2 that ARISS is in discussions for Amateur Radio stations / systems for successor space stations in Earth orbit and the Gateway space station planned for orbit around Luna. My impression is that ARISS reporting out at Hamcation 2023, that there are substantive talks underway, indicating that Amateur Radio systems are a real possibility as part of those programs.
It’s Zero Retries Interesting that ARISS-USA was able to attract Diana Schuler, formerly of NASA, to lead ARISS-USA’s proposed (and funded!) STEREO and SPARKI programs for enhancing ARISS educational activities that will soon include providing equipment and a fully developed curriculum for teachers.
Goodspeed, ARISS!
RFzero - Software Defined Transmitter
By Steve Stroh N8GNJ
Finally there is a Software Defined Transmitter, that doesn’t “bundle” a receiver, thus eliminating the cost, complexity, and compromises of an integrated transmitter / receiver (transceiver) unit.
I’ve been making the case for some time in Zero Retries that Software Defined Receivers is a solved problem. There are many good choices for Amateur Radio SD receivers such as units from RTL-SDR, SDRplay, Airspy, KrakenSDR, etc.
Thus, perhaps it’s time to reexamine the prevailing paradigm that a “radio” is assumed to be a transceiver - a transmitter and a receiver in the same unit… with the attendant compromises.
Thus, the RFzero Software Defined Transmitter was a welcome discovery!

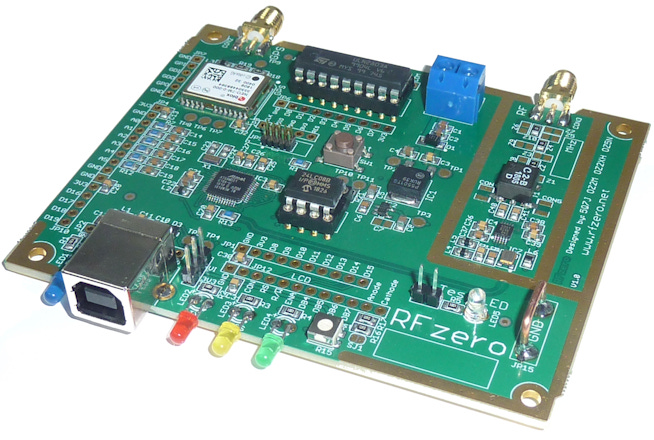

The RFzero™ is an Arduino multi-purpose GPS controlled Si5351A RF unit. It can be used as a beacon (IBP, SPB, CW, FST4, FST4W, FT4, FT8, JS8, JT9, ModeX (JT65, Q65, …), PI4, WSPR, …), stand alone WSPR/FST4W transmitter, signal generator, VFO, QO-100 dual LO, low cost GPSDO, e.g. for 10 MHz, IC-9700 LO, 90 MHz frequency counter or … More than 35 programs, Arduino sketches, are integrated into the Arduino IDE, so you can write or modify the software yourself. With the RFzero Manager you don’t even have to know anything about Arduino to use the RFzero™.
The RFzero™ can generate frequencies [between 2.289 MHz and nearly] 300 MHz. At the same time 28 I/O pins are available and eight of those are via an ULN2803A power driver. The programming and configuration are done via the USB port, thus no extra hardware programmer is needed.
The RFzero™ has been developed for radio amateurs, RF enthusiasts and everyone else who wants to extend their Arduino skills in combination with RF. The RFzero™ board is largely compatible with the Arduino Zero and Arduino M0+ boards. However, it has been carefully designed for flexible use in RF applications and with attention to the frequency spectrum and stability performance. Many users say that the RFzero™ is the best Si5351A RF solution available.
All of that for < $100 (not including shipping and accessories)!
As with most Software Defined Transceivers / Transmitters, the output power from the RFzero is minuscule (~20 milliwatts (mW)). But this is addressed by RFzero - see their Shop page for references to building a power amplifier3 for 144 -148 MHz (2 meters) that will amplify to 4 watts (W) and another power amplifier for 1240 - 1300 MHz (23 centimeters) that will amplify to 2W. RFzero has thought through many issues and provided needed accessories and advice such as how to calculate values for power amplifiers for a particular band. For example, the US 219 + 222 - 225 MHz band isn’t mentioned, but it seems straightforward to calculate the values needed to populate an RFzero "FET amplifier" board for that band.
And in referencing the RFzero shop… that’s the most refreshing part of RFzero - hardware is available. It’s developed! It’s shipping! You’re not putting down a deposit on a project that may or may not produce hardware (as has been my experience to date with Crowd Supply and the CaribouLite RPi Hat that I still haven’t received).
One of the benefits of a separate receiver(s) and transmitter(s) is that with no need to do transmit / receive switching, full duplex (FDX) is a possibility. It’s also possible to “integrate” the transmit and receive functions in software to approximate a transceiver’s simplicity of operation and blend the transmit and receive functions seamlessly… at least in concept (it’s a “simple matter of software”).
I look forward to following the RFzero and learning more about it from the RFzero mailing list.
RPX-100 Update
By Steve Stroh N8GNJ
The RPX-100 is a project in progress by the Austrian Amateur Radio Society (Österreichischer Versuchssenderverband - ÖVSV) to develop an open source Software Defined Transceiver for the Amateur Radio 50-54 MHz (6 meters), 144-148 MHz (2 meters), and 430-450 MHz (70 centimeter) bands. It’s intended to be used for high(er) speed data communications for VHF / UHF connectivity to the (Europe) HAMNET network.
I’ve been following the development of the RPX-100 for some time now. I was planning to reach out to the project to see how it’s progressing since they received a grant from ARDC 2022-034. In my background research prior to contacting them, I found a slide deck - Wideband Digital Transmission in the 6m Band - Last Mile for HAMNET (Google Slides) dated 2023-01-15 that provided a comprehensive update.
Terse summary from the slide deck:
The team has grown to seven members with a wide array of expertise.
Construction of ten prototype units and field testing using those units will commence by mid-2023.
General availability of the RPX-100 as a completed design, and potentially, kits to build an RPX-100, won’t be earlier than 2024.
As noted in the prior article, a common issue in using Software Defined transceivers / transmitters is low transmit power. Thus it’s notable that the RPX-100 is built around a LimeSDR Mini (with low transmit power), using a new design for a 6m / 2m / 70 cm 30 watt power amplifier.
