Revisiting the KM6LYW Radio DigiPi Project
By Steve Stroh N8GNJ
Now that Raspberry Pi units are becoming more widely available (see rpilocator for worldwide availability), and DigiPi v1.7 was recently released, it seemed an appropriate time to revisit the DigiPi Project.
The DigiPi is the ultimate hot-spot for all amateur radio data modes, including APRS, ax.25, winlink email, ft8, js8cal, slowscanTV, PSK31, packet and even CW. The implementation is an elegant, inexpensive, low-power, open-source Raspberry-Pi--based amateur radio data transceiver, managed exclusively by web browsers or smart-phone apps, with no bulky keyboards, monitors or complicated wiring.
As seen in the illustration above, the DigiPi is designed around the form factor of a Raspberry Pi Zero / Zero W / Zero2 W, but it’s not required to use those compact units. DigiPi will work with nearly any Raspberry Pi (for performance, the more modern Raspberry Pi’s work a bit better, but a Raspberry Pi 4 is probably overkill (unless you already have one that’s not being used).
DigiPi is a project of Craig Lamparter KM6LYW, who hosts the KM6LYW Radio YouTube channel, which is sufficiently, consistently Zero Retries Interesting to merit inclusion in the Closing the Channel section in every issue of Zero Retries.
DigiPi seems to be an ideal, reasonably inexpensive starter project for data communications via Amateur Radio. It’s versatile, as demonstrated in the v1.7 video above, showing it being used with an inexpensive Baofeng portable radio, and a high-end Icom IC-705. DigiPi can be interfaced with nearly any radio that has audio in, audio out, and a push-to-talk input. The project page provides ample documentation for building a DigiPi, and there are also a number of videos available to show actual construction details and techniques.
What’s most interesting to me, and the primary differentiation of DigiPi versus other Raspberry Pi-based Amateur Radio “modems”, is that DigiPi is designed to be an unobtrusive unit sitting in a corner, with no display (other than the optional small display on it). You interact with the DigiPi remotely via a larger computer or tablet or phone via a network connection. Note that the DigiPi is doing the “heavy lifting” - modem, application, etc. - the computer or tablet is merely display input / output.
In my view, there are a few minor concerns with DigiPi:
Some soldering2 is required; DigiPi is not a project that can be entirely assembled from “plug and play” hardware modules / cables. Thus to build a DigiPi you’ll need access to some (simple) soldering equipment and a bit of experience in soldering. Thus DigiPi is an ideal project to work on with a more experienced mentor.
Support for DigiPi is only available via a Discord group or Google Groups3 mailing list. In my specific experience, I find Discord forums to be “high bandwidth”, but folks with more agile brains probably won’t have the same issue.
While you can download the software for DigiPi freely…
Password is currently available to patrons on the KM6LYW Patreon Page.
See the DigiPi project page for an explanation of this policy.
It’s worth noting that one of the primary components of the DigiPi, the audio board (for [the majority of] radios that don’t have a built-in audio interface):
Fe-Pi Audio Z v2 [x] 1 Fe-Pi Sound Card without kit WB7FHC ($24)
is sourced from my friend and Bellingham Amateur Radio colleague Budd Churchward WB7FHC. The Fe-Pi was discontinued by its original creator and WB7FHC was able to “bring it back from the dead”. If you do purchase a Fe-Pi from WB7FHC, I suggest dropping him a note of Thanks for his willingness to continue supplying Fe-Pi units (especially at such a reasonable price).
Now that things have settled down a bit in our respective lives, I look forward to building a pair of DigiPi units with my daughter Merideth sometime this winter (with some of that soldering mentoring that I spoke of above).
My Letter to ARRL Regarding Elimination of Symbol Rate from US Amateur Radio Regulations
By Steve Stroh N8GNJ
This is a longstanding issue; for context, see:
The Annual Pactor 4 Hurricane Ritual (Zero Retries 0066)
US Legislation Proposed to Force FCC to Replace Symbol Limit on HF with 2.8 kHz Bandwidth Limit (Zero Retries 0078)
Interesting Letter to FCC from Texas Department of Public Safety (Zero Retries 0109)
Instructive Exchange Between Representative and FCC Chair (Zero Retries 0114)
Update post-publication - This article was edited after publication to remove a reference to New Packet Radio because in discussing NPR I misstated a major technical detail. See Zero Retries 0118 for details.
I concluded the latest article in this series (Instructive Exchange…) with this:
ARRL Appears to be the Conduit for Fixing the Symbol Rate Issue
As critical of, and unimpressed as I am with ARRL’s efforts to date on embracing the disruptive nature of new technologies in Amateur Radio of the 21st Century, I reluctantly conclude from the above that the best chance to capitalize on this brief window of interest / recognition of the importance of the Symbol Rate issue… is to work through the ARRL.
Thus, if you’re an ARRL member, I suggest that you contact your ARRL officials (all of them) to explain to them that for Amateur Radio of the 21st Century… what’s really needed is for all of the Symbol Rate limitations to be removed. Not just for HF bands, but also for the VHF / UHF bands. I think we ARRL members collectively need to specifically reach out to ARRL CEO David Minster NA2AA - na2aaa@arrl.org to impress on him the importance of including VHF / UHF in their work on removing Symbol Rate limitations.
Thus, here is my intended letter to NA2AA, the Officers, and Division Directors and Vice Directors of ARRL. I will be sending this letter4 to all of them via email in the coming weeks.
Dear ARRL Officer:
As background, I am a member of ARRL and an Amateur Radio Operator who is active in experimentation and operation of data communications on US Amateur Radio VHF and UHF bands. I publish a small newsletter called Zero Retries that focuses on technological innovation in Amateur Radio, including advanced methods of data communications.
I am writing to you about the “Symbol Rate Issue” that is unnecessarily restricting US Amateur Radio Operators from making use of advanced data communications techniques. The “Symbol Rate Issue” is much larger than the ARRL’s specific concerns about use of Pactor 4 modems in US Amateur Radio spectrum; more on this later in this letter.
Notably, in this recent YouTube video:
https://www.youtube.com/watch?v=i4IbeUAeejA,
FCC Commissioner Simington makes specific reference to … a number of friends in the Amateur Radio Relay League…. Thus, in this rare moment, ARRL seems to have the attention of three influential regulators…
Representative Debbie Lesko of Arizona
FCC Commissioner Nathan Simington
FCC Chairperson Jessica Rosenworcel
… that the “Symbol Rate Issue” is unnecessarily restricting the use of advanced data communications techniques in Amateur Radio.
As I related in Zero Retries:
In an email conversation, a knowledgeable friend explained to me that Rocenworcel’s statement that “the record is stale” is FCC-speak for:
We did get comments on this issue, but took no action then. Enough time has passed that to proceed on this issue, we probably need to start over.
Thus it seems likely that there will be a “do over” within the FCC on the issue of symbol rate limitations in US Amateur Radio.
Thus, the combination of the attention from the three regulators, and the likely “do over” provides an opportunity to fix the Bigger Picture of the “Symbol Rate Issue” - not just for US Amateur Radio HF bands, but also for US Amateur Radio VHF and UHF bands.
On the US Amateur Radio VHF and UHF bands, advanced methods of data communications are being unnecessarily restricted even more severely than on the HF bands.
Reference: ARRL’s online FCC Part 97 text - http://www.arrl.org/part-97-text
§97.307 (f) (5) A RTTY, data or multiplexed emission using a specified digital code listed in §97.309(a) of this part may be transmitted. The symbol rate must not exceed 19.6 kilobauds. A RTTY, data or multiplexed emission using an unspecified digital code under the limitations listed in §97.309(b) of this part also may be transmitted. The authorized bandwidth is 20 kHz.
In my opinion, the limitation of 20 kHz bandwidth is reasonable for the specified bands - 6m and 2m.
§97.307 (f) (6) A RTTY, data or multiplexed emission using a specified digital code listed in §97.309(a) of this part may be transmitted. The symbol rate must not exceed 56 kilobauds. A RTTY, data or multiplexed emission using an unspecified digital code under the limitations listed in §97.309(b) of this part also may be transmitted. The authorized bandwidth is 100 kHz.
In my opinion, the limitation of 100 kHz bandwidth is also reasonable for the specified bands - 1.25m and 70cm.
Note that there are no symbol rate limitations for bands above 70cm.
Limitations on “symbol rate” were understandable for data communications in the era of simpler analog radios and modems where use of high data rates could cause a radio to exceed acceptable technical parameters such as the authorized bandwidths of 20 kHz and 100 kHz.
But in the current era of software defined radios, where not just a data modulation, but the entire transmitted waveform can be generated with incredible accuracy, including technical parameters such as bandwidths, symbol rate limitations are an antiquated concept, and thus should be eliminated from the US Amateur Radio rules.
Thus I urge that ARRL, in this rare moment of attention with the FCC and Congress, when attempting to “Fix the Symbol Rate Issue”, also seek removal of symbol rate limitations from the US Amateur Radio VHF and UHF bands as well as the US Amateur Radio HF bands.
Respectfully,
Steve Stroh N8GNJ
Latest AREDN Updates
By Orv Beach W6BI
This article was originally posted by W6BI on a number of AREDN-related mailing lists. - Editor
Since the last AREDN software production release, there have been a number of nightly builds, some of which contain significant enhancements. As usual, the AREDN devs would appreciate some helping testing the updates. Here’s a list of the most significant ones.
If you’re planning on buying a new Mikrotik device, you’ll need to install a recent nightly build on it [as] Mikrotik has changed their code’s compression algorithm, and the AREDN code has been modified to accommodate it and allow successful software installations.
The Search function has been streamlined.
An installable cron package has been added for people who need more functionality than the built-in cron support.
If you’ve downloaded and added extra packages to a node, after updating to the latest nightly build, later builds will remember those packages and download and reinstall the correct versions for you.
Support for wildcard DNS entries has been added. This was done to support installing Sandstorm on a local computer. Sandstorm is an “app support platform” that lets you install and offer out over 70 web-based apps to your local AREDN community. It could be an excellent local support tool. [Note that any potential user of the Sandstorm platform will need to have a currently nightly build on their localnode.]

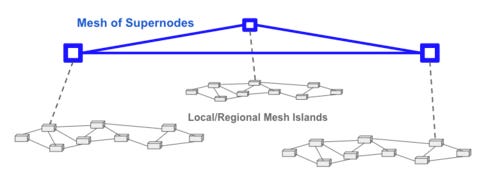

Added support for the supernode network. If you're not familiar with it, a supernode is a modified AREDN node that links to other supernodes. It allows “super-tunneling” but doesn't pollute your local node list with hundreds of remote nodes. Here's a graphic showing the topography of a supernetwork.
AREDN documentation on this feature is here and here.
After installing the latest nightly build if you see a “Supermesh” button on your node’s screen, it means it’s detected a local supernode. Clicking on that button will take you to your supernode's mesh status screen so you can view all the services available on the network. This behavior is defaulted on, but can be disabled in Advanced Configuration. Your local network will appear unchanged on your localnode.
The AREDN supernode map is here. By clicking on the various node icons in the upper right you can hide and show various node types. Also note the new color - green. That's for supernodes, and the supernode links are blue.
Possibly the most impactful change to you locally is that the default weight of a tunnel (what it contributes to an ETX value) has been changed from 0 to 1.
If there are both an RF link and a tunnel to a destination this nightly build may or may not change the preference to the RF path, depending on the quality of the RF link. For such a link configuration you could optionally crank up the tunnel weight high enough to where the node always (or usually) prefers the RF link. This would allow the tunnel to stay linked but not handle traffic unless the RF link went down. This would be an ideal configuration for a backup link. It's configurable in Advanced Configuration.
If your only link is a tunnel, this setting will have no impact on the behavior of your node.
ZR > BEACON
By Steve Stroh N8GNJ
Short mentions of Zero Retries Interesting items.
CQ is Back!
Context - Two (Apparent) Passings (?) in Zero Retries 0115.
CQ’s September, 2023 electronic edition has been posted. It’s notable that this issue is Volume 79, Number 9 - CQ has been in continuous publication for 79 years! Few publications can claim that kind of longevity and I hope CQ beats the odds for technical magazines in this era and continues publication.
Multicarrier base station transceiver for DMR, YSF, M17 etc. with MMDVM and LimeSDR hardware
This article is from QRadioLink:
QRadioLink is a GNU/Linux multimode (analog and digital) SDR (software defined radio) transceiver application using the Internet for radio to VOIP bridging (radio over IP), built on top of GNU radio, which allows experimenting with software defined radio hardware using different digital and analog radio signals and a Qt5 user interface.
Yay! This project is (finally) an illustration of the real potential of Software Defined Radio (SDR) technology - implement the entire stack of a data communications system via radio!
The author of this article uses a LimeSDR radio to implement not just an emulation of a conventional radio with input from a modem, but also implements the modem! He’s already implemented transmit and receive of Digital Mobile Radio (DMR), System Fusion, and M17; all of them operate as seamlessly as selecting different memory channels on a conventional FM VHF / UHF radio.
This is where we’re headed folks! Someone could package up this system - LimeSDR unit, power amplifier, and a simplified control panel, and sell it as a multimode digital voice radio. We’ve been seeking such a unit for more than a decade now.
My thanks to RTL-SDR.com for the pointer to this project.

Will someone… anyone… please create a reasonable quality plug and play buffer amplifier + power amplifier for a Software Defined Transceiver (SDT) such as the LimeSDR units that will accept the very low power output of SDTs, to output clean (filtered) 25 watt (good enough) or 50 watt (preferred) transmit power? We really need this last piece for practical Software Defined Transceivers!
VarAC V8.2 - “Ice breaker”, path finder random timer, Vmail relay info, “Sneak peek”, VarAC cluster, Logger32 support & more
While “Icebreaker” is the signature feature of this update (among many other new features), the most significant feature of this update (in my opinion) is Path finder Random Timer:
In V8.2, when you initiate a “path find” request, each station will now introduce a random delay of up to 60 seconds before responding. If they detect that the frequency is already occupied, they will persist in waiting until it becomes clear before replying to your path find request.
My thanks to Pseudostaffer Jeff Davis KE9V for the pointer to this item.
Full Duplex Added to Test Version of WSJT-X
From the AMSAT-DL forum:
DG2YCB has released a test version of WSJT-X improved which supports full-duplex i.e. decoding of downlink signals during TX phase. This way you can control and correct your own uplink signal. Transmitted and re-received own transmissions are shown in the same color (default yellow) as on the TX page right. Its still a test version and may be buggy but Uwe and team are looking foward to feedback.
The code can be downloaded here:https://sourceforge.net/projec…iles/WSJT-X_v2.7.0/Tests/
The full-duplex functionality is enabled in "Decode" menu. See screenshot attached.
vy73 de Florian DF2ET
Not mentioned in the snippet above, but this new capability is ideal for use on satellites QO-100 and AO-109, and (reportedly) includes many other useful satellite features (v2.7.1).
My thanks to Pseudostaffer Jeff Davis KE9V for the pointer to this item.
AMPKT - Amateur radio packet explorer
This is a project to facilitate experimentation with connecting two Linux machine's network stacks via the amateur radio bands.
Apologies - I really need to find the original mention of this project because it was humorous (to me) that the original mention references the use of “Amateur Radio Bands” via a pair of Software Defined Transceivers with no more concern than bringing up an old Serial Line Internet Protocol (SLIP) link between two systems. Almost all of the configuration of the link was configuring the internal Linux networking. We really need to work to engage very bright, capable techies like this author into being more engaged in Amateur Radio!
